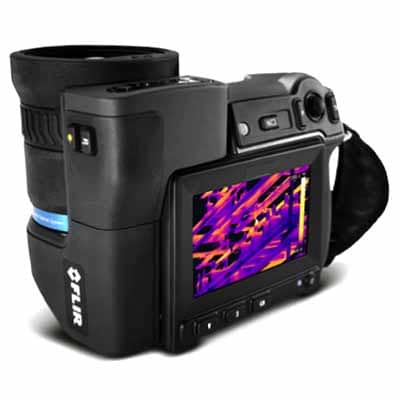

FLIR T1010 HD Thermal Imaging Camera
HD thermal excellence for precision-driven professionals
Product Overview
FLIR T1010 HD Thermal Imaging Camera Price in Bangladesh
FLIR T1010 is a flagship HD thermal imaging solution engineered for expert-level diagnostics, and the FLIR T1010 HD Thermal Imaging Camera Price in Bangladesh reflects its strong demand among professionals working in complex industrial environments. Designed for accuracy and efficiency, this camera delivers exceptional thermal performance for critical inspection tasks.
Built with a powerful infrared sensor, the device captures true HD thermal images with outstanding clarity. It supports ultra-high resolution imaging enhanced by advanced processing technologies, allowing users to detect even the smallest temperature variations. This makes it ideal for electrical inspections, mechanical analysis, and infrastructure monitoring where precision is essential.
One of its key strengths is its advanced image enhancement system, combining technologies like MSX and UltraMax to produce detailed and low-noise thermal visuals. These features improve image quality and provide better context, helping professionals interpret complex thermal data more effectively during inspections.
The camera is equipped with a responsive touchscreen interface and a highly intuitive user system. It includes programmable controls and real-time image adjustment features, enabling users to customize their workflow and improve efficiency in demanding field conditions.
A unique ergonomic design with a rotating optical block allows flexible viewing angles, making it easier to inspect hard-to-reach areas comfortably. This enhances usability during long inspection sessions and reduces physical strain while maintaining accuracy.
Additionally, the FLIR T1010 supports advanced inspection planning and reporting tools. With integrated software compatibility, users can organize inspection routes, analyze data, and generate detailed reports efficiently. This improves productivity and ensures a streamlined workflow for large-scale projects.
Durability is another key advantage of this device. Built with a rugged structure, it is designed to perform reliably in harsh industrial environments. Its robust construction ensures long-term use, while maintaining consistent performance under demanding conditions.
Overall, this HD thermal imaging camera combines ultra-high resolution, intelligent features, and durable design, making it an ideal choice for professionals who require precise and reliable thermal analysis for industrial diagnostics, maintenance, and advanced engineering applications.
Key Features: FLIR T1010 HD Thermal Imaging Camera
HD Resolution, Wide Temperature Range
The T1010 records 1024 × 768 true HD resolution images, with thermal measurements up to 650°C (1202°F).
Expert Features
With programmable buttons, an agile GUI, and live image enhancements such as 1-Touch Level/Span, the T1010 has the expert features you need.
Compact and Easy to Use
The T1010 has a robust yet compact frame with a 120° rotating optical block that puts any target within comfortable viewing range.
Specifications
Specifications: FLIR T1010 HD Thermal Imaging Camera
Specifications
IR Resolution
1024 × 768; up to 3.1 MP with UltraMax
Thermal Sensitivity/NETD
<25 mK @ 30°C (86°F)
Field of view (FOV)
12° × 9°
Digital Camera
Field of view adapts to the infrared lens
Image Modes
Thermal, thermal MSX, digital camera
Display
Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Storage Media
Removable media SD or SDHC card. Class 10 or better recommended
Imaging & Optical
4.3” Display
800 × 480 pixels
Auto orientation
Automatic landscape or portrait
Automatic Image Adjustment
Standard or histogram based on the image content
Built-in Digital Camera
5 Mpixel with LED light
Camera size excl lens (L x W x H)
167.2 mm × 204.5 mm × 180.4 mm (6.6 in. × 8.0 in. × 7.1 in.)
Camera software update
Using USB cable or SD card
Color Palettes
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Pitch
17 µm
Detector Type
Focal plane array (FPA), uncooled microbolometer
Digital Camera
Field of view adapts to the infrared lens
Digital image enhancement
Adaptive digital noise reduction
Digital Zoom
1–8× continuous
Display Type
Capacitive touchscreen
Field of view (FOV)
12° × 9°
f-number
1.2
Focal Length
83.4 mm (3.28 in)
Focus
One shot or manual
Frame Rate [Full Window]
30 Hz
Gallery
Review thumbnail/full image on the camera Edit measurements/palettes/image modes on the camera
Image Frequency
30 Hz
Image Modes
Thermal, thermal MSX, digital camera
Infrared Image
Full color infrared image
IR Resolution
1024 × 768; up to 3.1 MP with UltraMax
Laser
Activated by a dedicated button
Laser Alignment
Position is automatically displayed on the infrared image
Lens Identification
Automatic
Manual Image Adjustment
Linear based, possible to adjust level/span/max./min.
Minimum IR focus distance
1.3 m (4.26 ft)
Minimum IR–visual alignment distance
1.3 m (4.26 ft)
MSX Resolution
1024 × 768 pixels
Multi Spectral Dynamic Imaging (MSX)
Thermal image with enhanced detail presentation
Non-radiometric IR video recording
H.264 to the memory card
Non-radiometric IR video streaming
H.264 video using USB
Spatial resolution (IFOV)
0.20 mrad
Spectral Range
7.5–14 µm
Thermal Sensitivity/NETD
<25 mK @ 30°C (86°F)
UltraMax
Yes
Video Lamp
Built-in LED light
Viewfinder
No
Visual Image
Full color visual image
Visual Video Recording
H.264 to the memory card
Visual Video Streaming
H.264 video using USB
Measurement & Analysis
Area
1 box with max./min./average
Difference Temperature
Delta temperature between the measurement functions and the reference temperature
Emissivity Correction
Variable from 0.01 to 1.0 or selected from the materials list
External Optics & Windows Correction
Automatic, based on the inputs of the window transmission and temperature
Measurement Corrections
Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation
Measurement Presets
No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
Object Temperature Range
-40°C to 650°C (-40°F to 1202°F)
Object temperature range Accuracy
±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures from -40°C up to 1200°C
Optics Transmission Correction
Automatic, based on signals from internal sensors
Profile
No
Reference Temperature
Yes
Reflected apparent temperature correction
Automatic, based on the input of the reflected temperature
Set-up Commands
Save options, programmable button, reset options, set-up camera, language, time & units, camera information
Spot Meter
1
User Presets
The user can select and combine measurements from one box and one delta
User Interface
Display
Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Languages
Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish
Touch Screen
Yes
Power
Battery operating time
>2.5 hours at 25°C (68°F) and typical use
Battery type
Rechargeable Li ion battery
Charging system
In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature
0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F)
Charging Time
2.5 hours to 90% capacity, charging status indicated by LEDs
External Power Operation
AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)
Power Management
Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown
Environmental & Certifications
EMC
ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Encapsulation
IP 54 (IEC 60529)
Ergonomics
The 120° rotating optical block allows you to point the camera in multiple directions while maintaining a comfortable position
Humidity (Operating and Storage)
IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Laser Classification
Class 2
Laser Type
Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Operating Temperature Range
-15°C to 50°C (5°F to 122°F)
Radio Spectrum
ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2
Safety
EN/UL/CSA/PSE 60950-1
Shock
25 g (IEC 60068-2-29)
Storage Temperature Range
–40 to 70°C (–40 to 158°F)
Tripod Mounting
UNC ¼"-20
Vibration
2 g (IEC 60068-2-6)
General
Form Factor
Tilt
Housing material
Magnesium
Weight
1.9 kg (4.3 lb)
